E2C

The most popular air-cooled UV curing system in the world – over 25,000 units installed.

E2C

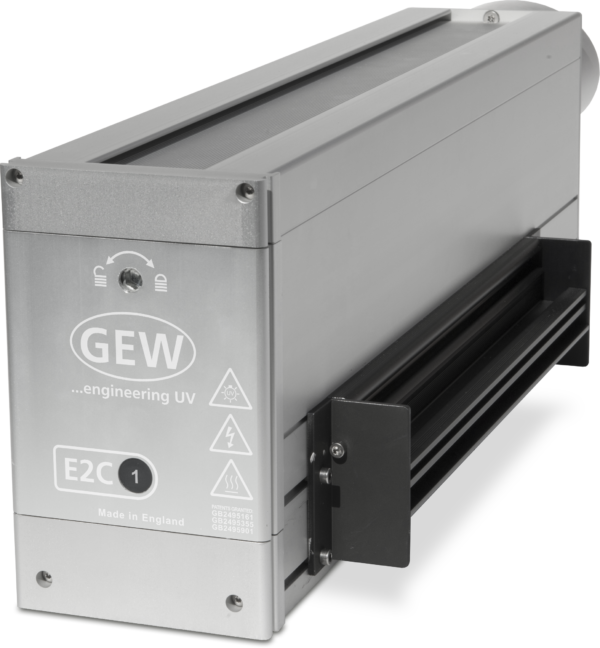

E2C is GEW’s most popular UV dryer with over 25,000 units installed worldwide. Fully air cooled, it delivers unparalleled curing performance up to 140W/cm due to patented ultra-efficient reflector designs. No similar product delivers more curing performance at this energy level.

Perfect for use on any machine up to 60cm in width, E2C supports printing on the widest range of heat-sensitive materials because our actively air-cooled reflectors reduce heat transfer to the substrate. It also boasts GEW’s famous quick-change cassette design enabling a new lamp to be fitted in under 2 minutes with only one hex key tool required.

Reliability is guaranteed and when powered by GEW’s RHINO system, E2C can be purchased with a 5-year warranty which means no unplanned maintenance costs well beyond the return on investment period.

E2C can be integrated and customised to fit a wide range of printing and coatings machines. GEW’s experienced engineers will be happy to help understand your requirements further.


Benefits of E2C

  • High performance – Optically tuned reflectors and low IR emission support high curing speeds on sensitive substrates
  • Lowest total cost of ownership – 45% energy saving; save tens of thousands of Euros or Dollars over the lifetime of your machine; reduced plant air consumption
  • Maximum machine productivity – Fast start lamp technology; system proactively avoids unplanned downtime; consistent, high-speed curing; quick to install
  • Flexible Options – Doped lamps (Fe, Ga); customisation to suit specialist applications; multipoint UV monitoring
  • 5-year warranty – Safeguards against unplanned maintenance costs
  • LED ready – Upgrade easily to LED UV curing in future by using the same RHINO ArcLED hybrid power supply

E2C at work

Label Converting 52
GEW E2C Cassette Change
Label Converting 32

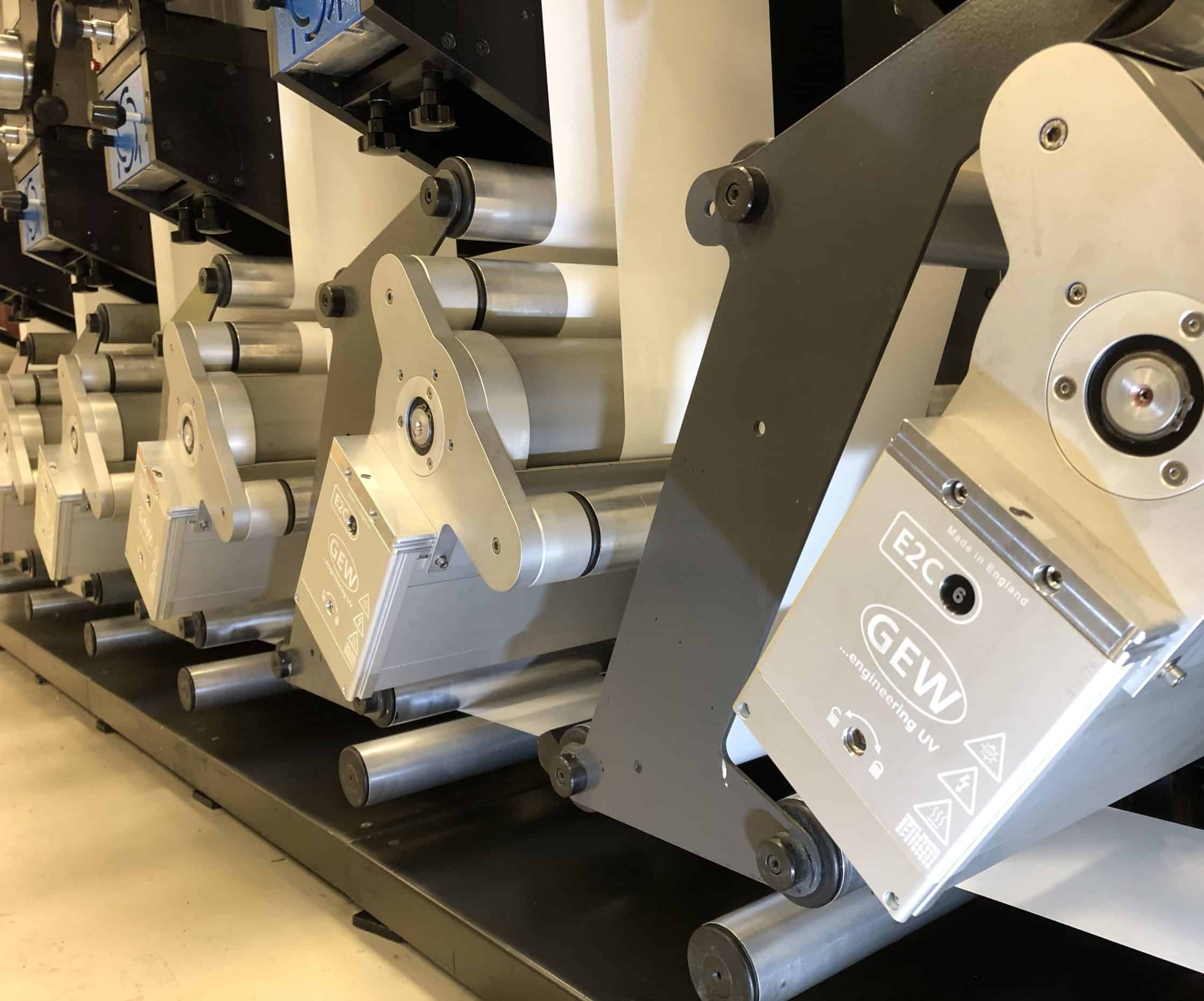

GEW E2C UV lamphead on a press

E2C specification

Max electrical power140W / cm
SpectrumMercury**
Irradiance at focal point5.8W / cm²*
Typical dose @ 100m / min125mJ / cm²*
Maximum length60cm
Standard cross section110mm W x 190mm H
CoolingAir
Standard max operating temperature40°C (104°F)
Standard max humidityNon-condensing
*Measured under standard GEW lab conditions with a standard lamphead configuration.
**Lamp variants available on request.

ArcLED compatible

One of the key benefits of E2C is its ArcLED capabilities.

ArcLED’s power system allows the printer to switch seamlessly between mercury arc technologies and LED technology.

To find out more about how E2C’s ArcLED capabilities can benefit your business, download our brochure below:


Watch our E2C case study video

Based near Basel in Switzerland, PrintAvia is a dedicated supplier to the global aviation industry, with customers throughout Europe and beyond. The company has invested in several retrofitted GEW UV curing systems to increase production capacity, to meet the rigorous demands of this specialised, time-sensitive market.

With four narrow-web presses fitted with GEW’s UV curing systems, PrintAvia can produce up to one million baggage labels each day. Efficient production and delivery is critical, with no margin for error.

This short study gives an insight into the business and highlights how the team there have used GEW UV curing to offer faster delivery times, at the same time enabling them to take on on new customers through their increased production capacity.

Find out what they have to say about GEW’s mercury arc technology by watching the video. Or you can find more E2C case study videos here:


Speak directly to a sales representative

E2C is a state of the art UV curing system which can be customised for a wide range of applications.

You will complete jobs quicker, using less energy – keeping your costs sustainable and your customers happy.

If you would like to find out more about this curing system, we are here to help. Please contact the sales representative that is best placed for your region.
