Optically transparent UV-cured hard coats, topcoats, overcoats and clearcoats are utilised in numerous plastics decorating processes. As the descriptors suggest, these coatings tend to be clear but also can be tinted or formulated with other visual additives, are applied to the outermost surface of manufactured parts, and serve to provide a high level of physical protection and/or aesthetic enhancement to the primary goods being manufactured. Examples of plastic decorating processes that incorporate UV-cured hard coats include physical vapour deposition (PVD), in-mould decorating (IMD), in-mould labelling (IML) and finishing.

In PVD processes, metal is vaporised and condensed onto plastic surfaces in very thin layers to produce visually flawless metallised effects. The metal is then protected with a UV-cured clearcoat. For injection and blow moulding applications, preprinted thermoformed sheets or flexible film appliqués are inserted into the tooling of in-mould machines that enable preprinted decorative graphics to be directly moulded into the surface of plastic components. One side of the printed material often includes a previously cured UV topcoat or is UV-cured after thermoforming and before moulding.

In finishing processes involving 3D parts, manufacturers spray, dip, flow or vacuum coat protective UV-curable coatings directly onto formed items, which are immediately cured inline. UV topcoats are instrumental in upstream processes, where they are applied to the surfaces of rolls of raw polymer film utilising various web coating application technologies. These UV-cured films are incorporated into downstream print and moulding processes and/or applied to the surfaces of other manufactured items.

Product designers find UV-cured coatings appealing for several reasons. First, UV coatings enable lightweight plastic parts to be produced with hard and durable outer finishes that can survive handling, filling, assembling, shipping, long term use and exposure to harsh conditions. It also means that inexpensive plastic materials can be used to create visually appealing items perceived to be of much greater value.

This is possible because printing and decorating processes have been perfected to disguise plastic surfaces so that they appear metallic; exhibit a wood grain or other natural material composition; or display colorful printed graphics, logos, text and symbolic operator interface guidance.

With UV-cured coatings, it is even possible to incorporate added functionality such as the ability for surfaces to be easily cleaned; provide antimicrobial capabilities; resist scratching, abrasion, marring, water and chemicals; enhance reflection or reduce glare; and improve weatherability.

A wide range of plastic goods manufactured for automotive, household and industrial uses require UV-curable hard coats for the aforementioned reasons. Examples include gas station pump panels; membrane switches; touchscreens; electronic signature pads; natural and backlit advertisement, solar, and architectural panels; automotive interior trim and external assemblies; rigid cosmetic packaging; embellishments and hardware fixtures; medical devices, home interior and lawn and garden equipment panels and assemblies; mobile phones and accessories; lighting louvers; polarised sun and safety glasses; LCD displays for televisions, smartphones, laptops and tablets; and others.

UV-curable polymer coatings are typically applied in a liquid-like state and immediately transformed into a crosslinked solid upon exposure to ultraviolet light. UV curing is a photopolymerisation process in which ultraviolet energy drives chemical crosslinking reactions in specially formulated materials. Exposure to UV energy creates incredibly strong molecular bonds within polymer resins in less than a second. These bonds are instrumental in generating the surface properties characteristic of hardcoats. From a processing perspective, UV curing provides the necessary energy to crosslink coatings without transferring excessive thermal heat, which can melt or warp the underlying plastic components. UV-cured coatings also have the advantage of being able to adhere to an extensive range of materials.

Historically, medium-pressure mercury vapour lamps, including both electrode arc and microwave, have been used for curing UV hard coats. Users of hard coats have been closely watching the progress UV LED curing has made in structural bonding adhesives, fibre optic coatings, printing inks, pressure-sensitive adhesives and graphics coatings. As a result, plastics manufacturers are anxiously anticipating the availability of UV LED-curable surface coatings for their own processes and are increasingly asking material and equipment suppliers for updates on UV LED hard coat options.

While UV LED curing technology is not yet ready for most hard coat applications due to 1) lack of UVC LEDs, 2) oxygen inhibition at the surface, and 3) insufficient irradiance at greater working distances, development activity is increasing in this space and will drive viability and adoption in the future.

UV spectral output

Ultraviolet wavelengths between 200 and 450 nm are fundamental to UV curing and commonly segmented as:

  • UVC (200 to 280 nm)
  • UVB (280 to 315 nm)
  • UVA (315 to 400 nm)
  • UVV (400 to 450 nm)
Spectral Distribution Graph

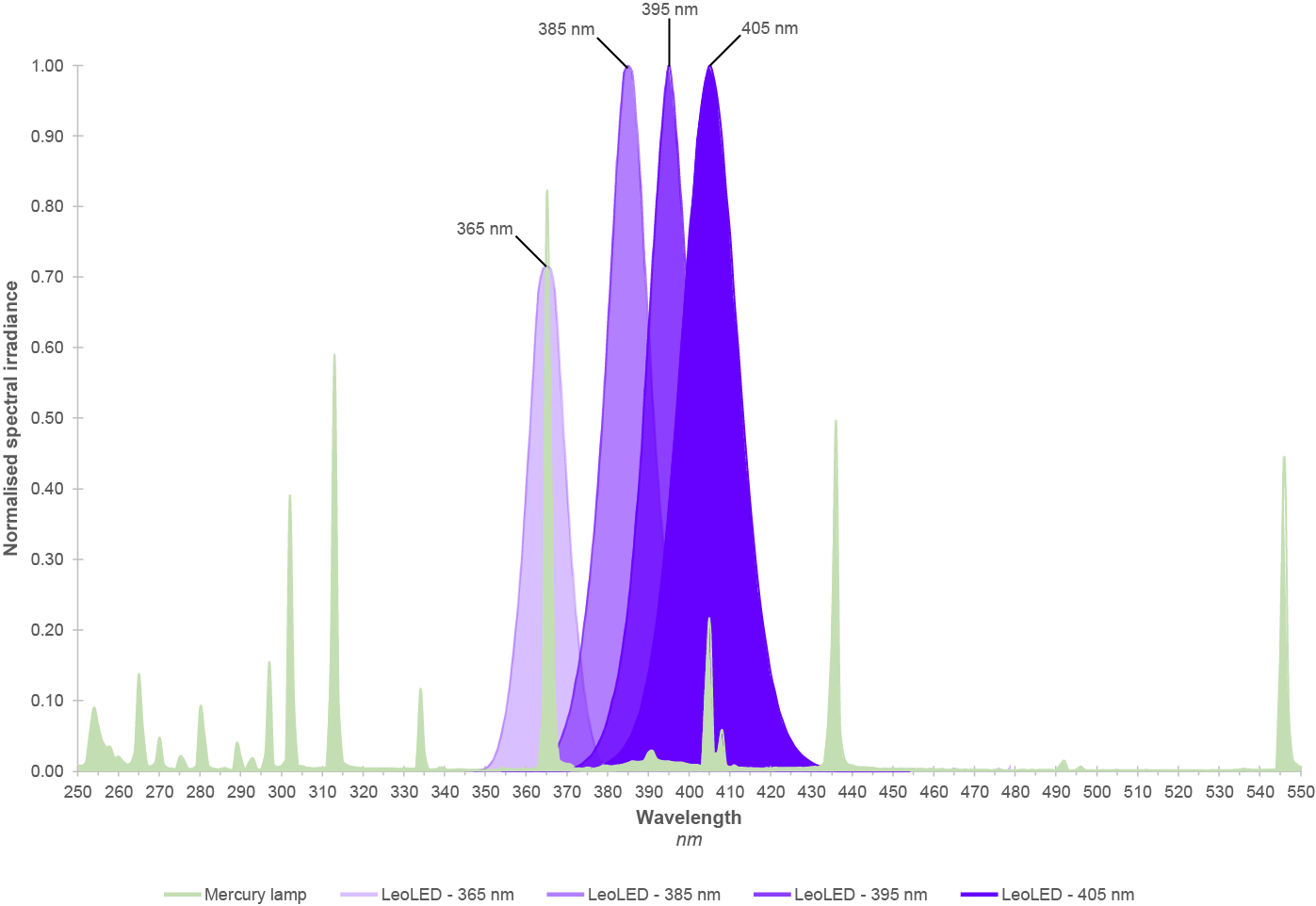

Figure 2. Spectral output of mercury vapour vs. UV LED

Of these four segments, UVC produces the shortest and greatest energy wavelengths while UVV produces the longest and lowest energy wavelengths. UVC wavelengths tend to be absorbed at the surface of coatings while UVA and UVV wavelengths penetrate much deeper. Medium-pressure mercury vapour lamps are broad-spectrum and emit all four wavelengths, as well as visible and infrared. By comparison, UV LED curing lamps are concentrated within longer UVA and UVV wavelengths between 365 and 405 nm, with recent development in UVC occurring between 275 and 285 nm. A comparison of a mercury vapour lamp to UV LEDs is illustrated in Figure 2.

Highly functional industrial coatings predominantly rely on photoinititators that efficiently absorb UV irradiance between 220 and 260 nm also while reacting a bit to longer UVC and UVB wavelengths. As a result, the primary challenge delaying UV LED curing of hardcoats is a mismatch between long UVA wavelengths emitted by commercial UV LEDs and the chemistry’s need for short UVC wavelengths.

In non-hardcoat markets presently using UV LEDs to cure inks, coatings and adhesives, formulators use specific photoinitiators that react to longer UVA wavelengths. Since longer wavelength absorbing photoinitiators tend to yellow when exposed to UV energy, formulators must mask the yellowing with pigments or blend various photoinitiators with other chemistry in ways that minimise yellowing.

This was not initially straightforward, but ongoing development has successfully led to clear over print varnishes (OPVs) for graphics coatings that cure with LED at competitive line speeds, are acceptably non-yellowing and provide enough protection for many printed labels and some packaging. Unfortunately, the inability to use preferable photoinitiators that react to UVC means that many of the more durable properties delivered by hardcoats are simply not possible with longer wavelength LEDs today.

Surface cure and oxygen inhibition

Figure 3. Oxygen inhibition and UV wavelength penetration

When photoinitiators absorb ultraviolet wavelengths, they create free radicals (R•) as illustrated in Figure 3. Free radicals drive crosslinking by bonding with resin molecules to create long continuous polymer chains.

Oxygen inhibition occurs when oxygen (O2) molecules in the air interfere with this process. This interference is generally limited to the surface of the coating, where it weakens free radicals and reduces their overall concentration. Formulations sensitive to oxygen inhibition tend to have incomplete polymerisation near the top surface that results in a sticky, tacky or greasy feeling.

For many mercury vapour curing applications, the presence of UVC wavelengths is enough to counter oxygen inhibition. Since UVC wavelengths are higher in energy and easily absorbed by free radical generating photoinitiators near the surface, they can often produce enough free radicals to offset what is lost to oxygen.

In applications that use UVA LED curing today, formulators initially struggled with oxygen inhibition. This issue was not overcome until UVA LED irradiance values increased to levels that could outpace oxygen inhibition at the surface, despite not being the ideal wavelength. Irradiance (W/cm2) is the power or rate of energy delivery per area. Over the last 20 years, UVA LED irradiance has increased from less than 0.5 W/cm2 to as much as 20 and even 30 Watts/cm2 today.

In general, it is possible to drive irradiance to greater levels with UV LEDs than mercury lamps, as illustrated by the chart in Figure 2; however, once UV output surpasses the minimum threshold irradiance needed to initiate the reaction and offset oxygen inhibition, energy density (J/cm2), which is the total delivered energy over time, has a greater impact on cure.

Irradiance at greater working distances

For three-dimensional parts with drastic or deep part profiles, another challenge for surface hardcoats is the magnitude of the irradiance. UV curing requires direct line of sight between the lamp head and all facets of the cure surface. For webs and flat part profiles, this is not an issue. As part shapes become more complicated, however, lamp heads must be positioned further from part surfaces to provide suitable clearance. Multiple lamp heads positioned at various angles also are sometimes necessary to provide full UV coverage to 3D parts.

Mercury vapour lamps used in part finishing and on web coating applications that experience web flutter and bounce in front of curing lamps often have a 50 mm (2-inch) focal length. This concentrates ultraviolet energy in front of the lamp head by the specified focal distance.

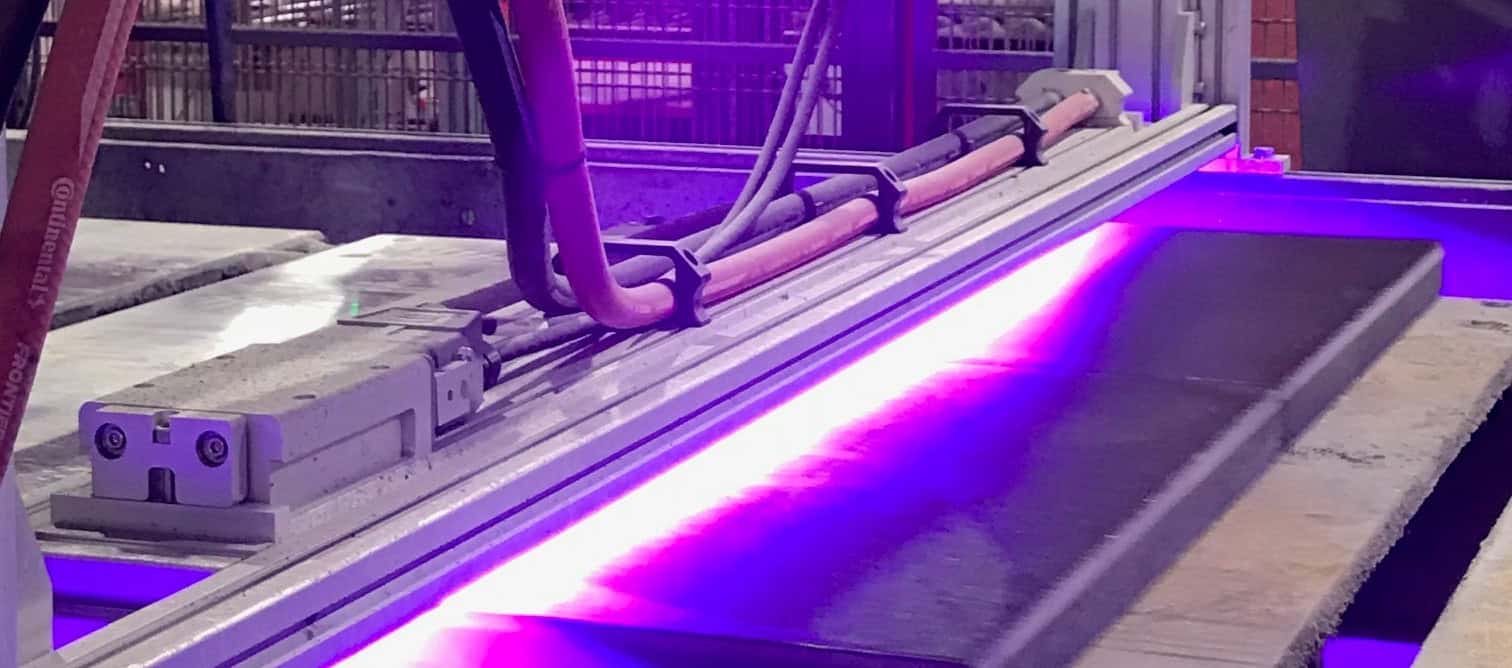

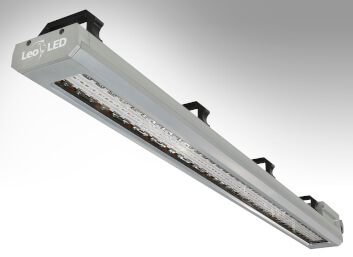

By comparison, UV LED curing systems, as shown in Figure 1, are a flat matrix of diodes where the greatest irradiance occurs near the lamp emitting window, and for conventional systems utilised in web applications where web tension and curing on rollers eliminates flutter, GEW electrode arc lamp systems utilise a 3 mm (0.12-inch) focal length.

UV LED output is emitted from flat emitting windows at a typical beam angle of 120°. As rays travel away from LED lamp heads, they diverge. The spreading out of rays reduces UV concentration and ultimately decreases the magnitude of the irradiance arriving at the cure surface. A minimum threshold irradiance required by the formulation is necessary to generate free radicals and drive crosslinking.

While commercial UV LEDs have considerably higher peak irradiance values than mercury vapour, the magnitude rapidly diminishes with increasing distance. There are always exceptions, but most commercial UV LED curing applications are designed to keep the UV LED lamp head as close to the web or part surface as possible for this reason.

In other cases, chemistry is designed to react to a lower irradiance or reflectors and optics are incorporated to collimate or direct the light across a greater distance.

Status of UVC LEDs

From an electronics fabrication perspective, the most promising LED wavelengths within the UVC band lie between 275 and 285 nm. While this is outside the preferred 220 to 260 nm range for hardcoat chemistry, prototype curing systems are currently emitting up to 4 Watts/cm2.

This is considerably higher than mercury vapour UVC irradiance. That said, this peak irradiance is measured at the lamp head and will fall to much lower levels at distances of 25 to 100 mm (1 to 4 inches).

In addition, short wavelength UVC LEDs do not yet satisfy cost, reliability and life requirements. It is important to note that UVA LEDs suffered through these same challenges 15 years ago, all of which were overcome through persistent innovation and development. Over the next 5 to 10 years, it is anticipated that UVC LEDs will follow a similar development path to what UVA LEDs experienced over the previous 15 years.

As both UV LED curing systems and UV LED chemistry continue to evolve, they will become increasingly more compatible with surface hardcoats and plastic decorating processes. This means that users of hardcoats will eventually reap the many benefits of UV LED curing technology, including longer source life, improved process control and reduced heat transfer to parts.

Until then, mercury vapour lamps and hybrid Arc/LED solutions are the preferred curing source for UV hardcoats. Current users, however, are strongly encouraged to continue communicating interest in UV LED coating technology to suppliers, as market demand is a critical factor in how management teams allocate R&D resources.

This article was written by Jennifer Heathcote, Business Development Manager, GEW, Inc, for Plastics Decorating magazine. To view the article on their site, click here.
